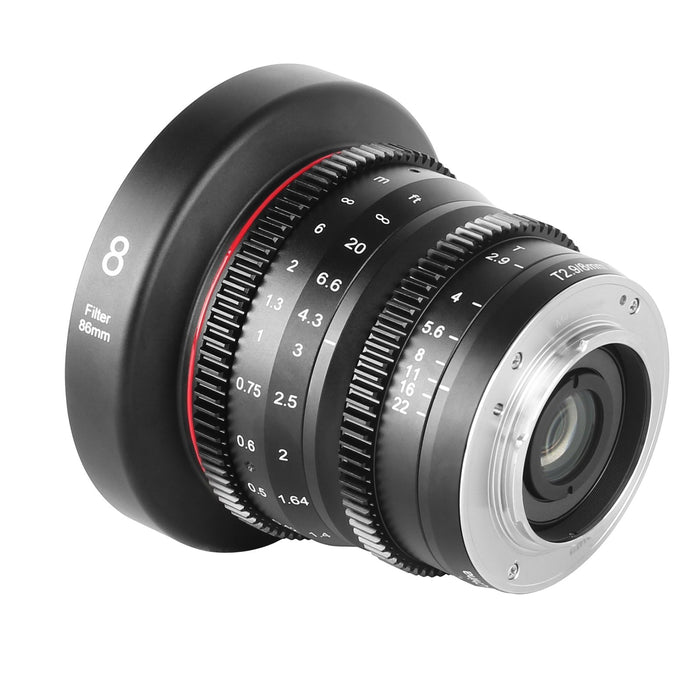

Mini Cinema Prime

Mini Cinema Prime

by Meike USA
$329.99 - $359.99
$359.99
$329.99 - $359.99
$359.99
Lens Mount: Micro4/3
Focal Length: 8mm T2.9

Specifications:

MK-8mm T2.9 M43 MK-10mm T2.2 M43 MK-12mm T2.2 M43 MK-16mm T2.2 M43 MK-25mm T2.2 MK-35mm T2.2 MK-65mm T2.2 MK-85mm T2.2
Lens Mount: M43/E/X/RF M43/E/X/RF M43/E/X/RF M43/E/X/RF M43 M43/E/X/RF M43/E/X/RF M43/E/X/RF
Min Focal Dist: 25cm 30cm 22cm 20cm 25cm 51cm 68cm 90cm
Filter Thread: ø86 ø77 ø77 ø77 ø77 ø77 ø77 ø77
Image circle: 22mm 30.5mm 22mm 22mm 28.4mm 28.4mm 30.5mm 30.5mm
Structure: 17 Elements in 12 Groups 15 Elements in 12 Groups 15 Elements in 10 Groups 13 Elements in 10 Groups 10 Elements in 8 Groups 10 Elements in 8 Groups 10 Elements in 7 Groups 9 Elements in 7 Groups
Focal Length: 8mm 10mm 12mm 16mm 25mm 35mm 65mm 85mm
Aperture Range: T2.9-T22 T2.2-T22 T2.2-T22 T2.2-T22 T2.2-T22 T2.2-T22 T2.2-T22 T2.2-T22
Iris Blades: 10 10 10 10 10 10 10 10
Focus Rotation: 260 Degree 260 Degree 260 Degree 260 Degree 260 Degree 260 Degree 260 Degree 260 Degree
Dimensions (Ø x L): ø80 × 76mm ø80 × 88mm ø80 × 81.7mm ø80 × 85.0mm ø80 × 86.0mm ø80 × 93.8mm ø80 × 84.6mm ø80 × 89.7mm
Weight 540g 575g 600g 565g 515g 638g 545g 640g
FOV on M43 camera: Diagonal: 108.6°
Horizontal: 96°
Vertical: 80°
 Diagonal: 90.4°
Horizontal: 77.6°
Vertical: 62.4°
 Diagonal: 86°
Horizontal: 73.2°
Vertical: 58°
 Diagonal: 73°
Horizontal: 61°
Vertical: 47°
 Diagonal: 49.7°
Horizontal: 40.6°
Vertical: 31°
 Diagonal: 37°
Horizontal: 29.7°
Vertical: 22.4°
 Diagonal: 20°
Horizontal: 16.1°
Vertical: 21.1°
 Diagonal: 15.4°
Horizontal: 12.4°
Vertical: 9.3°
FOV on APS-C camera: Diagonal: /
Horizontal: /
Vertical: /
 Diagonal: 106.4°
Horizontal: 95.6°
Vertical: 71.4°
 None None Diagonal: /
Horizontal: /
Vertical: /
 Diagonal: 44.4°
Horizontal: 36°
Vertical: 27.2°
 Diagonal: 24.4°
Horizontal: 20.6°
Vertical: 13.9°
 Diagonal: 19°
Horizontal: 15.8°
Vertical: 10.6°
